Configuring Administrative Preferences

This page is available to both master and tenant administrators to manage run-time activities not related to application development.

New UI Settings

This section displays settings that are specific to the New UI, which an administrator might want enable for the user(s).

When the EnableNUIForAll shared property is not selected and/or the AllowClassicUIForNewTenants is selected, these three options will be visible for individual users to switch between oldUI and NewUI. When the EnableNUIForAll shared property is selected, these three options will not be visible to the individual users.

  • New UI is enabled for me (<current user>): To enable NewUI for current user
  • New UI is enabled for the following users: Select individual user(s) from current tenant and enable NewUI
  • New UI is enabled for everyone: When this option is selected, the NewUI is enabled for all users under this tenant. When this option is selected the above two options will be disabled.
  • Show New Beta UI Tryout Link: To display the Try New Beta UI toggle in the application pages. Master Administrator can enable/disable this toggle for all tenants from the ShowNewBetaUITryoutLink shared property.

  • Allow users to set individual theme preference: As this preference indicates, select this preference so that all users, including non-administrative users, can select a theme to use for all applications, regardless of the theme chosen for each application by an administrator.

    Themes are only available in the New UI. For more information about themes, see Working with themes and Selecting a theme for a user for more information.

General preferences

  • PdfFontFamily: Add and configure more fonts to support different languages (For eg- Droid Sans Fallback for Chinese). You can update the value of this field with desired fonts. If a preferred font value is specified, it will be used to generate the pdf. Alternatively, if a preferred font value is not specified, then the value specified in the Shared Properties will be used.

    The font-family mentioned in this field is considered as the defualt font. Lato, Helvetica, Arial, Tahoma and sans-serif are available as default fonts.

  • Global Search Default Application: By default, the global search is set to search within all objects. From the Global Search Default Application dropdown, select the application to be set as default to search the objects within. Once selected, the application is shown as default in the Global search filter drop down.

    See Application Search for more information.

  • Show Pagination at Top: Shows a pagination control in the list view on the top for all users. This property is managed by the administrator. If enabled by the System AdministratorTenant Administrators cannot disable this property.

Notifications

  • Notify before session expiration:: You can configure whether session expiration notifications are sent at both the tenant and the user level. By default, the user settings is the same as the tenant setting. However, after you change the setting at the user level, that setting takes precedence for you; if an administrator changes the tenant setting, it has no effect on the user setting.
    • The maximum inactive period after which a session will timeout and expire
    • The maximum allowed session time after which a session expires and the user must re-login

    • Tenant level — From Setup Home, click Preferences under Administration Setup. Notify before session expiration is selected by default. Deselect this to turn off notifications at the tenant level.

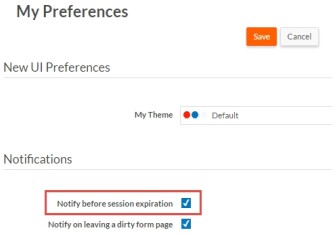

    • User level — From the user profile menu, select My Profile and then select My Preferences. Notify before session expiration is selected by default. Deselect this to turn off notifications at the user level.

      User Notification Preference

    On Platform Private Cloud, the default session times are configurable for each security level by modifying the following properties in the configuration file securityLevel.xml:

    • inactiveSessionExpireMins
    • loginSessionExpireMins

    See Built-in security levels for details.

    The method hasSessionExpired() returns true if the user session has expired and returns false if the user session has not expired.

    Note: This behavior is only available for users who are using the New UI. It is not available on setup and administrative pages.
  • Notify on leaving a dirty form page: Select this option to configure so that Platform will notify you before a session expires and/or before leaving a dirty form (New, Edit) page: If either of these options is deselected, you will not receive that type of notification.

Email Settings

When an administrator adds a new user to a Platform tenant, Platform automatically sends a welcome email to the user's email address. A new tenant-level preference allows administrators to suppress welcome emails for new users, also known as silent onboarding. This preference is available on both hosted Platform and Platform Private Cloud. It is particularly useful for Private Cloud tenants that use SAML or Kerberos for authentication.

Dynamic Image Resize Settings

The smart image feature provides automatic resizing of images:

  • Select Enable resizing and storing images for different device form factors to specify a maximum size in Image Upload field properties, so that Platform automatically resizes images when users upload them.
  • Enable a dynamic image preference that causes Platform to automatically store images that are 992px or wider in four pre-defined widths (992px, 768px, 480px, and 50px) and to render the appropriate image. For example, on record list pages, Platform uses the smallest image, but for view pages and pages that display cards, Platform uses the image closest to but smaller than the device. The dynamic image preference applies to all apps in a tenant. Images narrrower than one or more of the pre-defined widths will be stored in the original size and the narrower widths. For example, an image with a width of 500px would be stored at 500, 480, and 50.
  • To have Platform automatically resize images on upload, use the Image Upload field property Maximum Image Size and specify a value in pixels under Shared Properties > Images. For landscape images, Platform applies the maximum size to the width. For portrait images, Platform applies the maximum size to the height. When Maximum Image Size is specified, Platform ignores the Maximum File Size property. Platform resizes images only if they are larger than the specified value.

Note: When you set the field property or preference, it applies to images uploaded after the setting, not to previously stored images.

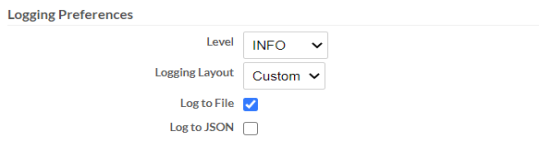

Logging Preferences

This section displays settings that are specific to the logging, which is available for both MASTER and TENANT administrator(s). This functionality is governed by EnableCustomLogging shared property.

  • Level: By default, the logging level is set to Default. From the Level dropdown, select the preferred logging level to log files for debugging. The following levels of logging are available for selection in the Level dropdown.
    • Default: For MASTER users, this option logs all the INFO messages corresponding to normal application behavior, basically providing a skeletal information of what occurs.

      For TENANT admins, the Default option logs the level as set by the MASTER. TENANT admin can override the MASTER's setting by selecting any other preferred logging level.

    • Other log4j logging levels available for selection are OFF, FATAL, ERROR, WARN, INFO, DEBUG, TRACE and ALL.
  • Logging Layout: By default, the logging layout is set to Default. From the Logging Layout dropdown, select the preferred logging layout. The following layouts of logging are available for selection in the Logging Layout dropdown.
    • Default: In the Default logging layout, Log to File is set as preset and the logs are saved in a standard format.

    • Custom: In the Custom logging layout, the user can define to log the files by selecting either of Log to File and Log to JSON, or both.

      For TENANT admins, the Default option logs in the layout as set by the MASTER. TENANT admin can override the MASTER's setting by selecting the Custom layout.

  • Log to File: All logs are saved in standard format. The log files are available in following location. This option can only be selected if the logging layout is set to Custom.

    <ROLLBASE_HOME>/Storage/<CustID>/log

  • Log to JSON: All logs are saved in JSON format. The log files are available in following location. This option can only be selected if the logging layout is set to Custom. These JSON formatted log files can be viewed in the UI if only Log to JSON is selected.

    <ROLLBASE_HOME>/Storage/<CustID>/logJSON

    Note: The above mentioned paths can change according to the the log directory defined in the node-config.json file.

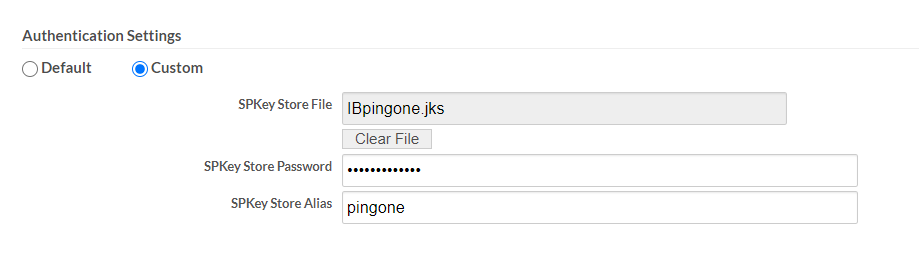

Authentication Settings

This section displays settings specific to account authentication, which is available for both MASTER and TENANT administrator(s). The following settings of authentication are available for selection in this section.

  • Default: By default, the Authentication Settings is set to Default. In the Default setting, the authentication configured by the MASTER in the control panel is preferred.
  • Custom: In the Custom setting, the TENANT administrator can configure the authentication on per tenant level. If not configured, the authentication falls back to the settings configured at the MASTER administrator level.

    Specify the values for the following fields in Authentication Settings section when set to Custom:

    Custom Authentication Settings Description
    SPKey Store File The name of the key store. In the prerequisite steps example, InfiniteBlue.jks.. This value can be edited by the TENANT administrator.
    SPKey Store Password The key store password. In the prerequisite steps example, this is myPassword.
    SPKey Store Alias The key store alias. In the prerequisite steps example, this is server.

For more information on authentication settings, see the authentication configuration section in the Control Panel.

Multi-Factor Authentication Setup

This section displays settings to enable multi-factor authentication for specific account's, which is available for both MASTER and TENANT administrator(s). The following settings of Multi-Factor Authentication are available for selection in this section.

  • Use Multi Factor Authentication to authenticate users: By default, this option is unchecked. To enable, check the option and proceed to user selection in order to save the multi-factor authentication setup.
  • User Selection: The administrator can select the users from the pool of available users eligible for multi-factor authentication.

For more information, see Multi-Factor Authentication.

GIT Integration

This section displays settings to enable GIT Integration, which is available for both MASTER and TENANT administrator(s). The following settings of GIT Integration are available for selection in this section.

  • Default: By default, this option is selected. In the Default setting, the GIT integration configured by the MASTER in the Control Panel (instance level) is preferred.

  • Branch: In the Branch setting, the GIT integration configured by the MASTER in the control panel is preferred but the TENANT ADMIN has a provision to enter any other existing GIT Branch to be used across the tenant-level.

    Note: Selection of a sub-directory in the branch is currently not supported.

  • Custom: In the Custom setting, the GIT Integration can be custom configured by entering the following GIT properties.

    • SSH URL: The GIT SSH URL providing access to a GIT repository.

    • Branch: TENANT ADMIN has the provision to enter any existing branches of the GIT Repository to be used across the tenant-level.

      Note:
      • If the entered branch does not exist, a new branch with the entered field value is created.

      • Selection of a sub-directory in the branch is currently not supported.

    • SSH Passphrase: An optional encryption key enacting as an extra layer of security to the SSH Private key. For more information, see Connecting to GitHub with SSH.

    • SSH Private Key: A user private key which is stored in the computer to use the GIT services.

      Note: Currently, RSA type SSH Private Key is only supported.

For more information on an instance-wide GIT configuration, see Git Integration in the Control Panel.
